How to Build a 400whp 2022+ WRX

The transmission is the real ceiling

Tuners generally hold a stock-transmission FA24 near 350 lb-ft to keep the factory gearbox alive. A Stage 2 ethanol car on the stock turbo already sits at roughly 348 lb-ft. A 400whp build makes considerably more than that. So understand what you are actually deciding. The engine will survive 400whp. The gearbox is being asked to do something it was not designed for, every time you use the power. Some cars last a long time; the failure is not instant. But you are spending transmission life to make the number, and a rebuild or an STI-transmission swap is a five-figure conversation. There are three honest responses. Accept the risk, drive it sympathetically, and budget for a gearbox eventually. Cap the build lower - a 350whp tune on a small upgraded turbo is dramatically kinder to the drivetrain and barely slower in the real world. Or plan the transmission upgrade into the build from the start rather than discovering it later. What does not work is pretending the limit is not there. It is the single most common way VB big-power builds turn into money pits.

The parts list

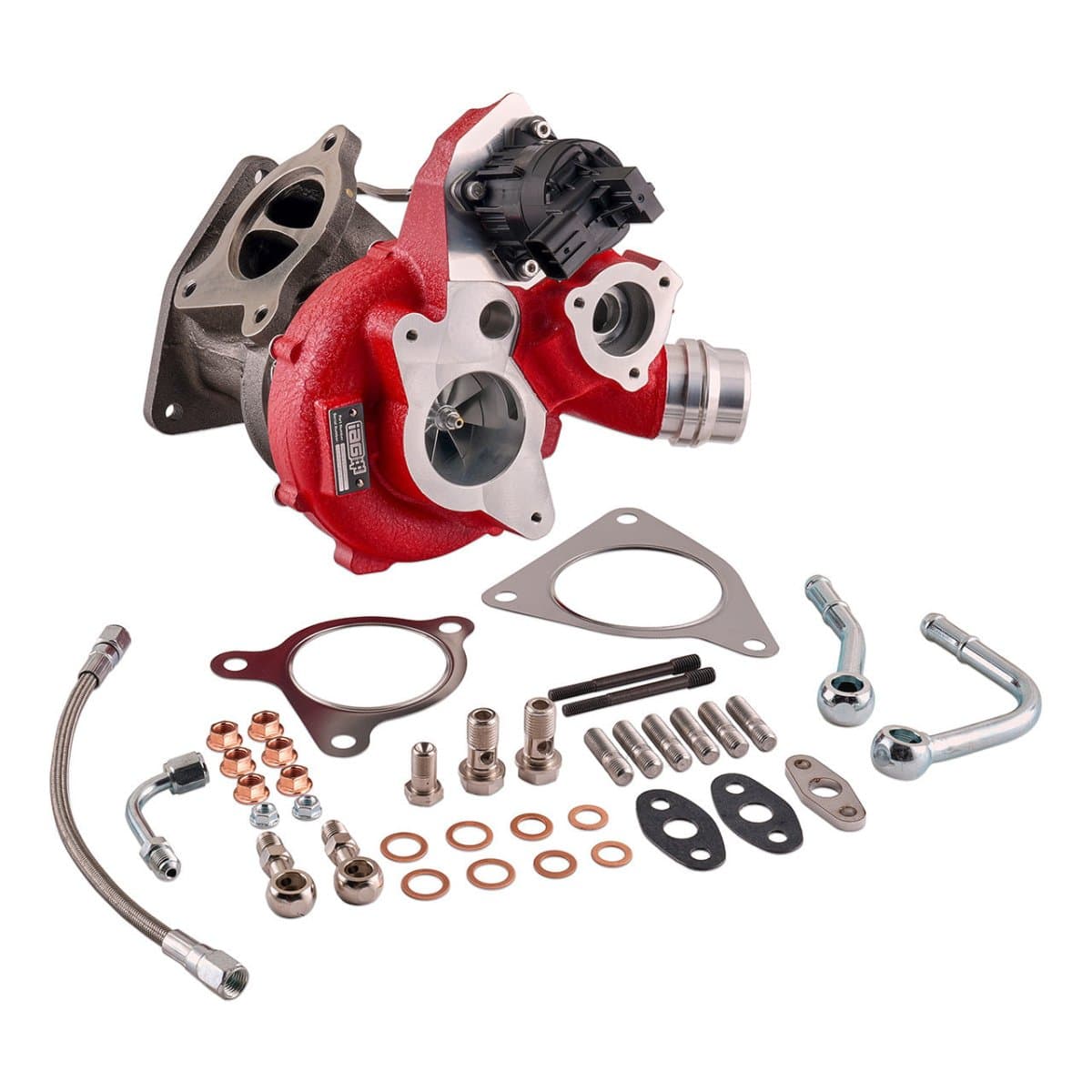

Turbo, roughly $1,800 to $3,400. Several proven FA24 options exist in the stock location. Ball bearing units in the 600-class are the common choice for this power target, and the stock-location fitment keeps the install sane. Upgraded direct injectors, roughly $1,660. The factory GDI injectors run out of flow well before 400whp on ethanol. This is not optional and it is not the place to economise. High pressure fuel pump, roughly $1,235. The factory HPFP is the other half of the fuel ceiling. Injectors and pump go in together - upgrading one without the other just moves the restriction. Low pressure fuel pump, roughly $220 for a 430 lph unit. Ethanol at this power needs volume the factory in-tank pump cannot supply. Flex fuel sensor kit, roughly $440. At this power level, running a fixed ethanol map on a variable-quality pump is asking for trouble. Front mount intercooler, roughly $760 to $1,160. A top mount is not adequate for sustained 400whp heat. Catted J-pipe, roughly $750 and up. Required for flow and required for the tune. Clutch, roughly $680 and up. The factory clutch is not a long-term match for this torque. Pro tune, budget $800 to $1,500. This is not off-the-shelf map territory.

The parts that define a 400whp build

Where the money actually goes

Add the parts and you are near $8,000 at the cheap end of the turbo range and closer to $10,000 at the top. Then add labor, because a turbo, injectors, a high pressure pump, an intercooler and a clutch is a lot of hours if you are not doing it yourself. Then add the pro tune. A realistic all-in figure is $10,000 to $14,000 for a car that started as a $32,000 WRX. That is worth saying plainly, because the parts list alone reads cheaper than the project is. Compare it against the 300whp build at roughly $3,400 in parts. You are spending three times as much for perhaps 25 percent more power, at the cost of drivetrain margin, warranty, fuel economy and daily usability. That maths is not an argument against building it. Plenty of people want the car and the number, and that is a completely legitimate reason. It is an argument for going in with your eyes open rather than arriving here by accident one part at a time.

What it is like to live with

A 400whp VB is not a difficult car in traffic, but it is a different car. A larger turbo trades low-rpm response for top-end - the stock car's best trait is its fat midrange, and a big turbo build gives some of that away to make the peak number. An aggressive clutch means a heavier pedal and a sharper take-up. Fine on an open road, tiring in stop-start traffic. Choose the mildest clutch that will hold your torque rather than the strongest one available. Fuel economy on ethanol drops 20 to 30 percent, and at this power level you will be visiting E85 pumps often. If your commute does not pass one, this build will annoy you every week. Maintenance tightens up. Shorter oil intervals, plugs as a wear item rather than a service item, and enough monitoring that you notice a problem before it becomes a rod. This is the tier where an owner who logs their car keeps their engine and one who does not, sometimes does not.

The verdict

Build 400whp if you want a 400whp car and you have budgeted for the gearbox conversation. It is achievable on stock internals, the parts are proven, and the FA24 is a genuinely strong engine at this level. Do not drift into it. The failure mode on this platform is not a blown engine - it is an owner who built to 300whp, then added a turbo, then discovered the fuel system was the limit, then discovered the clutch was, then discovered the transmission was, and spent $14,000 in increments they never sat down and approved. If you are not certain, build 300whp and drive it for a year. It is the sweet spot on this car by a wide margin, it costs a third as much, and it stays inside every limit the factory drivetrain was designed around. The turbo will still be there next year if you still want it.
